Plan 884 — Two-Bedroom Casita / ADU plan, 884 sq ft

Plan 884 is a pre-designed, pre-engineered casita / ADU plan: 884 sq ft, two bedrooms, one bath, one story, 29'-6" wide by 40'-2" deep. It is sealed by a Registered Architect in Arizona and offered as Design Only ($663), Plan Review Ready ($2,652) or Permit Ready for the City of Phoenix ($3,536).

Registered ArchitectState of Arizona
Self-Certified ProfessionalCity of Phoenix
Engineering in-houseStructural, MEP, energy
Plan review supportWe answer the city's comments

Plan 884

Casita / ADU

Two bedrooms, full bath, deep covered patio

2Bedrooms
1Baths
1Car Garage
1Story
884Sq Ft

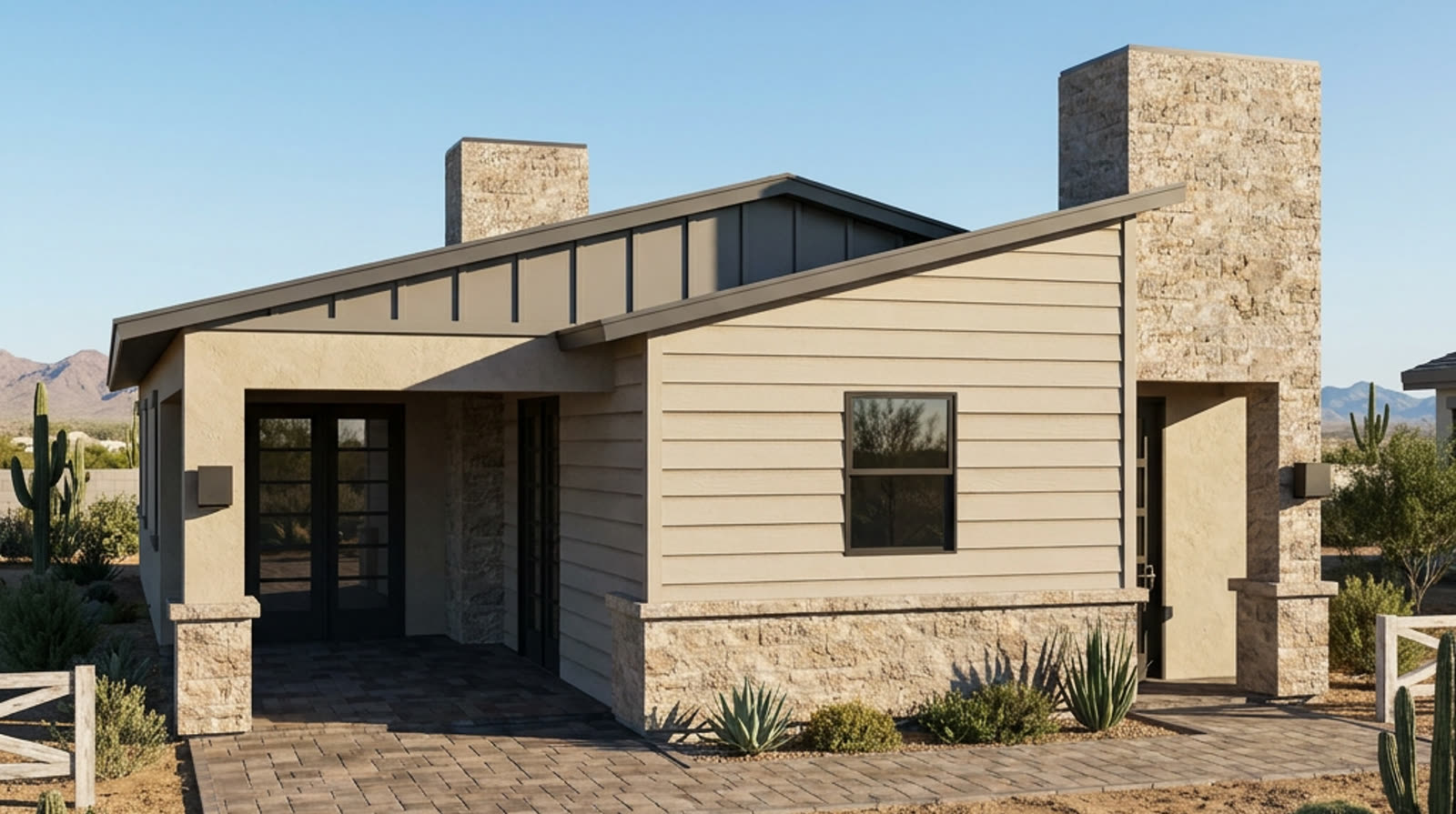

Plan 884 casita / ADU, Modern Craftsman elevation Modern Craftsman

Floor plans

Floor Plan 884 SF

About this plan

Small enough to sit in a standard Phoenix back yard, planned so it never feels like an accessory building. Kitchen, dining and living run together as one room and open through French doors onto a deep covered patio. Two real bedrooms sit off a short hallway, sharing a full bath with separate tub and shower. At 884 sq ft it sits comfortably inside Arizona's by-right ADU limit.

Key features

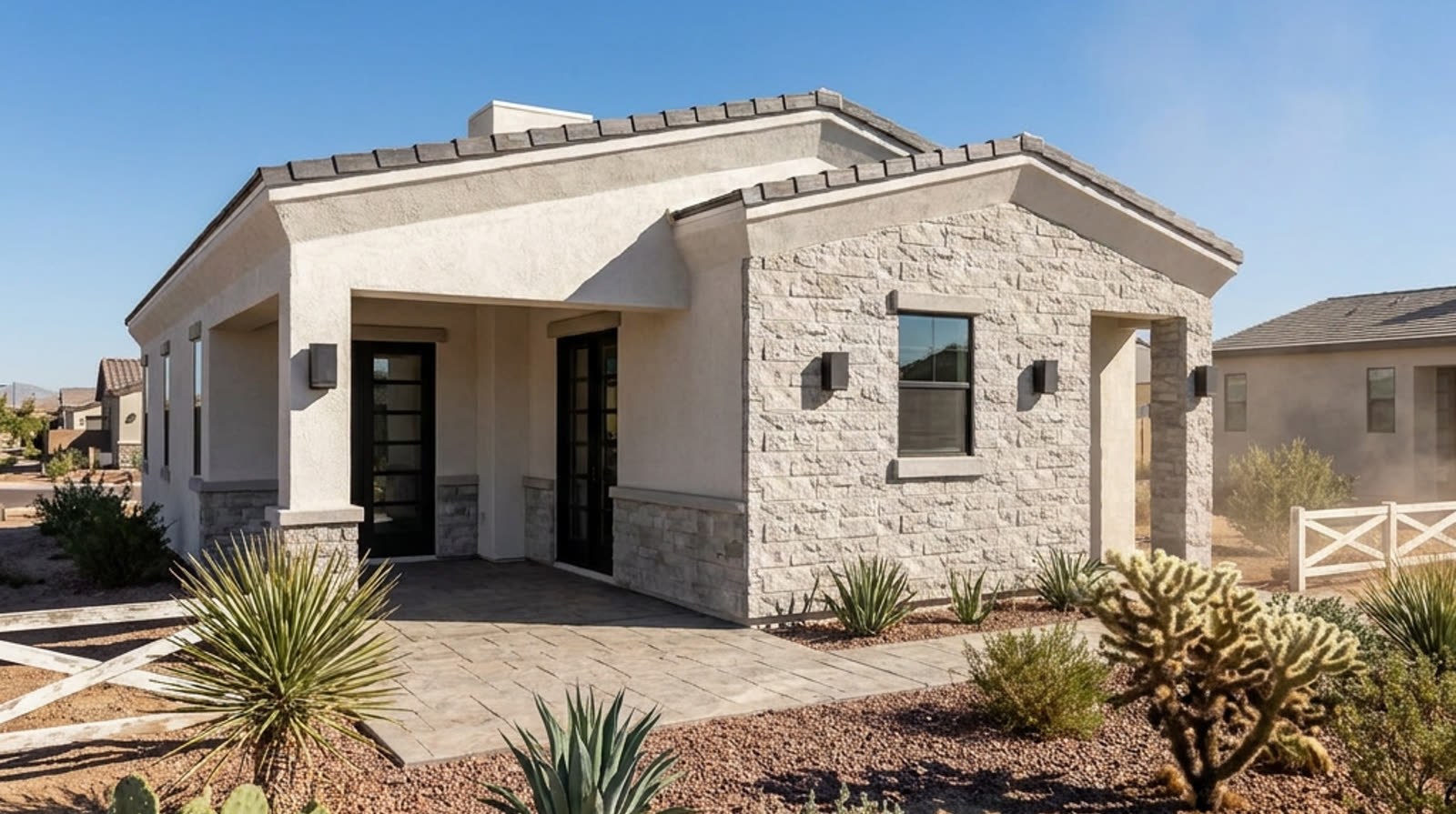

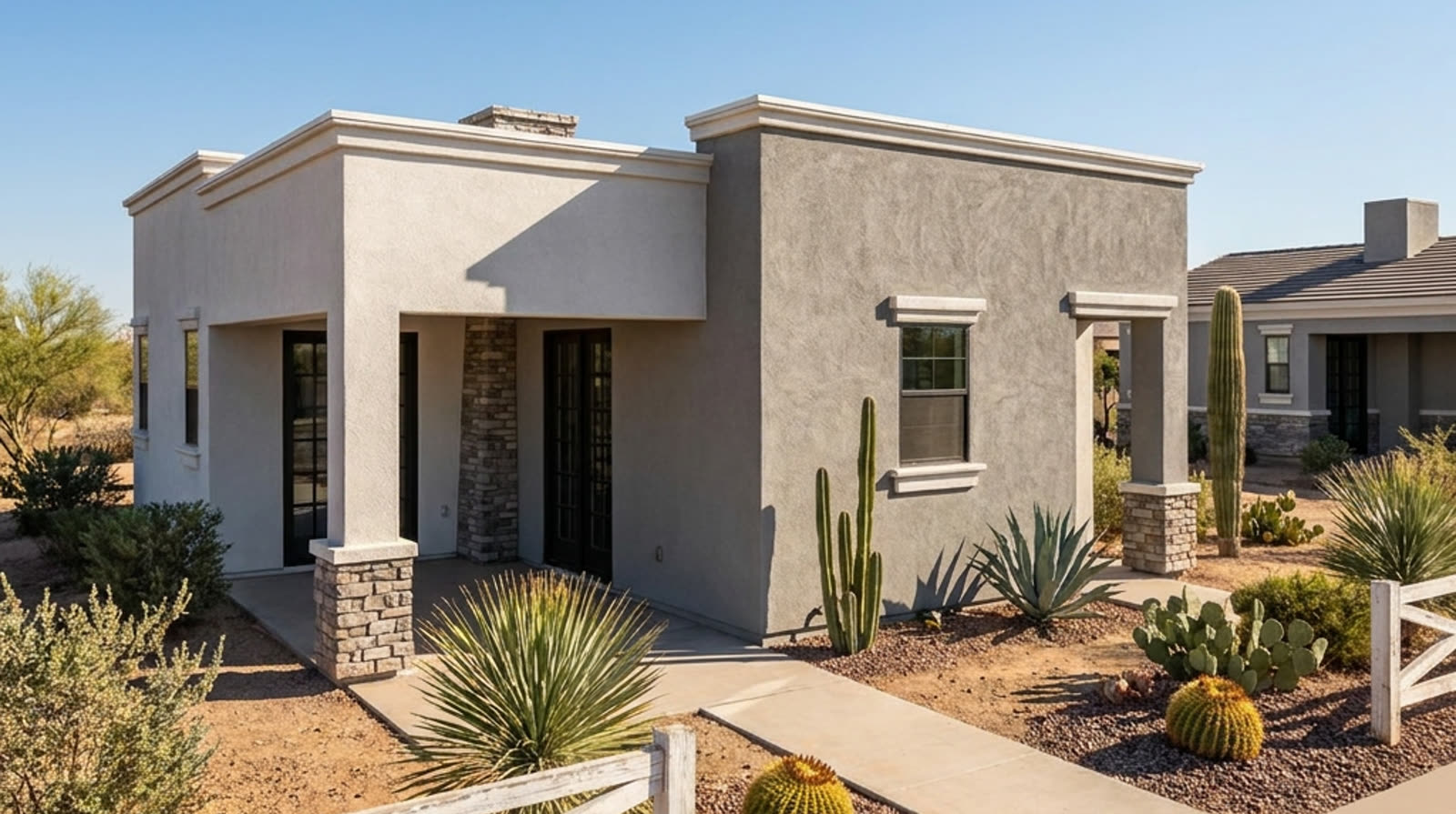

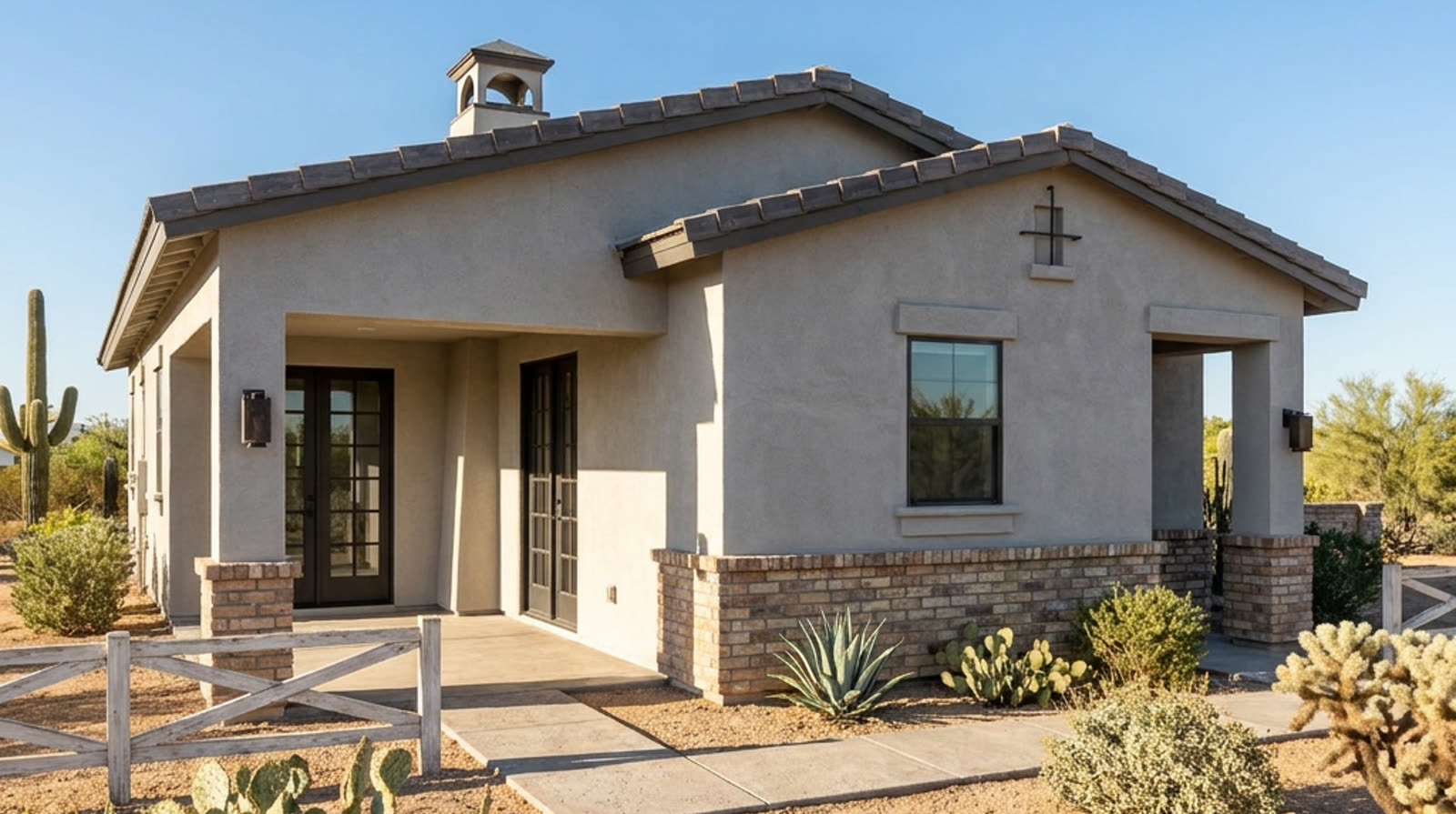

  • Four elevation styles on one floor plan — Modern Craftsman, Contemporary Southwestern, Modern Mediterranean and Modern Ranch
  • Two bedrooms — rare at under 900 sq ft
  • Full bath with separate tub and shower
  • Open kitchen, dining and living in one space
  • Deep covered patio off the dining room
  • Covered entry with its own front porch
  • Interior mechanical room
  • 10'-0" ceilings throughout
  • Under 1,000 sq ft — ADU by-right in Arizona

Dimensions

29'-6"Width
40'-2"Depth
10'-0"Ceiling
14'-8 3/4"Height
Design OnlyConcept design — plans, elevations, sections $663$0.75 / sq ft Request
Plan Review ReadyFully engineered and sealed, any jurisdiction $2,652$3.00 / sq ft Request
Permit ReadyComplete City of Phoenix submittal set $3,536$4.00 / sq ft Request

Will Plan 884 fit as an ADU on your lot?

Plan 884 is 29'-6" wide and 40'-2" deep and sits under the 1,000 sq ft accessory dwelling unit (ADU) size cap. Phoenix and Scottsdale also limit an ADU to 75% of the main house, so it suits a main house of at least 1,179 sq ft, and in Scottsdale it must be the first ADU on the lot. See the ADU rules for Phoenix and Scottsdale, or send us your address and we will check setbacks and lot coverage first.

Questions about Plan 884

Can Plan 884 be built as an ADU in Phoenix or Scottsdale?

In most cases, yes. At 884 square feet it is under the 1,000 square foot ADU size cap in both cities. Both cities also limit an ADU to 75% of the main house, so the main house needs to be at least 1,179 square feet. In Scottsdale, a second or third ADU is limited to 500 square feet, so Plan 884 must be the first ADU on the lot. Setbacks, lot coverage and any HOA covenants still have to be checked for your parcel.

What do the three Plan 884 tiers cost?

Design Only, the concept design with plans, elevations and sections, is $663. Plan Review Ready, fully engineered and sealed for any jurisdiction, is $2,652. Permit Ready, a complete City of Phoenix submittal set, is $3,536.

Request a plan

Tell us the plan and the tier, and where you're building. We'll come back with a fixed-price proposal and a schedule. Every project runs on a direct agreement between architect and owner — invoiced, not checked out.

Building outside Arizona? Design Only and engineered sets are available anywhere. Permit Ready is City of Phoenix.
