Plan 863 — One-Bedroom Casita / ADU plan, 863 sq ft

Plan 863 is a one-storey casita / ADU plan of 863 sq ft livable and 980 sq ft of construction area: one bedroom with a walk-in closet, a full bathroom, an open living room, a separate recreation room and an interior mechanical room, 26'-0" wide by 39'-10" deep with 10'-0" ceilings. It is drawn in four elevation styles on the one floor plan, and is being finished and engineered now.

Plan 863

Casita / ADU

One bedroom, full bath, separate recreation room

1Bedroom
1Bath
1Story
4Elevations
863Sq Ft
Plan 863 casita / ADU, elevation 1 Elevation 1

Floor plan

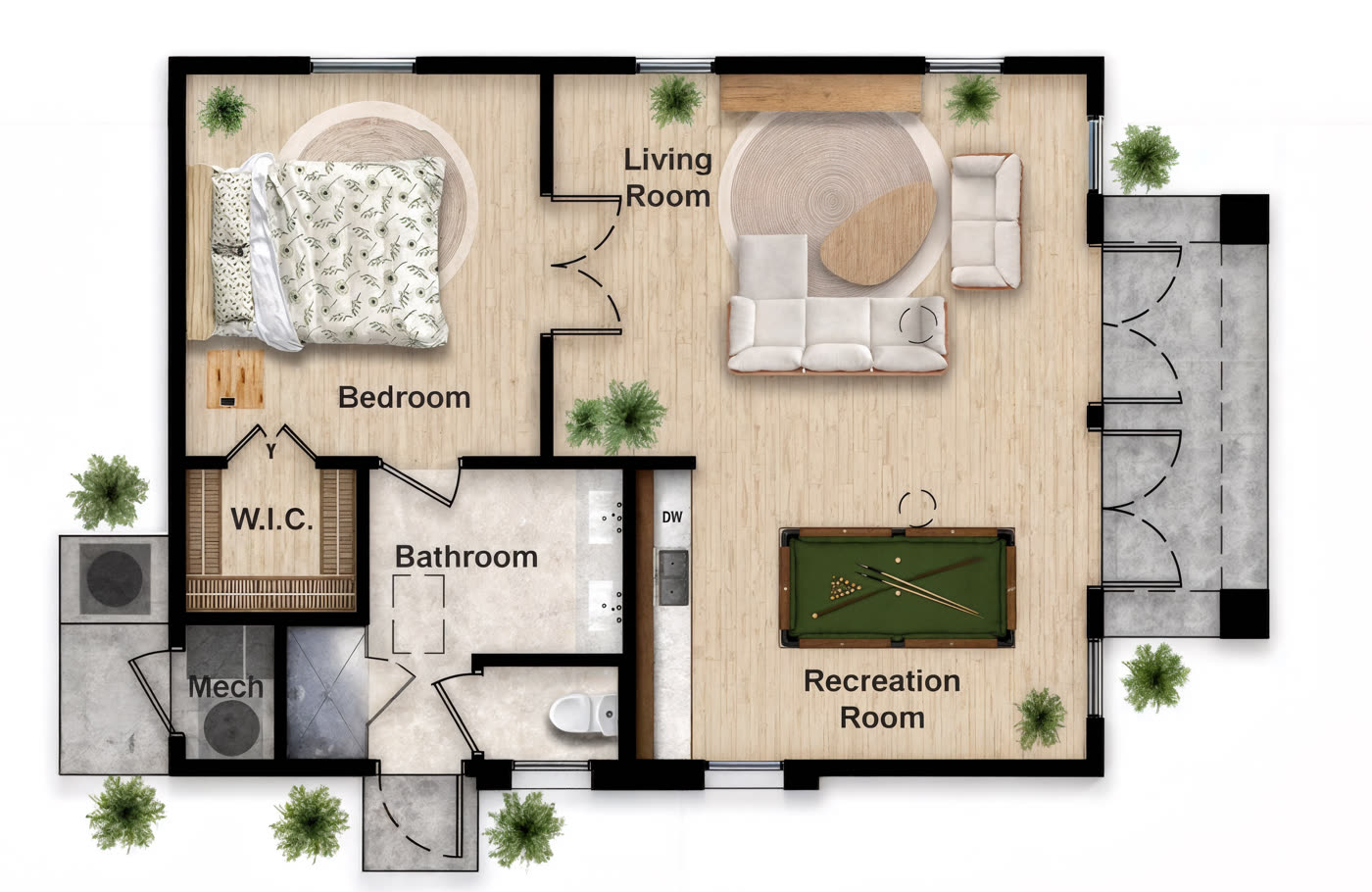

Floor Plan 863 SF

About this plan

One bedroom, but not a one-room casita. The living room and the recreation room are separate spaces, so the plan works as a guest house, a rental or a home office without everything happening in a single room. The bedroom has its own walk-in closet and sits away from the entry, the bathroom is reachable from both the bedroom and the living side, and the mechanical room is inside the building rather than hung off the back wall. At 863 sq ft it stays under Arizona's by-right accessory dwelling unit (ADU) size limit.

Key features

  • Four elevation styles on one floor plan, each with its own walkthrough reel
  • Separate living room and recreation room
  • Bedroom with walk-in closet, set away from the entry
  • Full bathroom reachable from the bedroom and the living side
  • Interior mechanical room
  • Covered patio off the recreation room
  • 10'-0" ceilings throughout
  • Under 1,000 sq ft — ADU by-right in Arizona

Dimensions

26'-0"Width
39'-10"Depth
10'-0"Ceiling
14'-4 1/2"Height

Plan 863 is in preparation

Not yet released

The design and the four elevation styles are done — that is what you are looking at above. The construction documents and the engineering are being finished, so the plan is not on sale yet and we are not quoting a price for it. Tell us you are interested and you will be the first to hear when it is released, with pricing for all three tiers. If you need a casita sooner, Plan 884 is available now.

Will Plan 863 fit as an ADU on your lot?

Plan 863 is 26'-0" wide and 39'-10" deep and sits under the 1,000 sq ft accessory dwelling unit (ADU) size cap. Phoenix and Scottsdale also limit an ADU to 75% of the main house, so it suits a main house of at least 1,151 sq ft, and in Scottsdale it must be the first ADU on the lot. See the ADU rules for Phoenix and Scottsdale, or send us your address and we will check setbacks and lot coverage first.

Questions about Plan 863

Is Plan 863 available to order yet?

Not yet. Plan 863 is in preparation: the design and the four elevation styles are complete, and the construction documents and engineering are being finished. Tell us you are interested and we will contact you as soon as it is released, with pricing for all three tiers.

Can Plan 863 be built as an ADU in Phoenix or Scottsdale?

At 863 square feet it sits under the 1,000 square foot accessory dwelling unit (ADU) size cap in both cities. Both also limit an ADU to 75% of the main house, so the main house needs to be at least 1,151 square feet. In Scottsdale a second or third ADU is limited to 500 square feet, so Plan 863 would have to be the first ADU on the lot. Setbacks, lot coverage and any HOA covenants still have to be checked for your parcel.

What is the recreation room in Plan 863?

Plan 863 separates the living room from a second room of its own, shown on the floor plan as a recreation room. It suits a games room, a home office, a studio or a second sitting room, and it opens to the covered patio rather than passing through the bedroom.

Request a plan

Tell us the plan and the tier, and where you're building. We'll come back with a fixed-price proposal and a schedule. Every project runs on a direct agreement between architect and owner — invoiced, not checked out.

Building outside Arizona? Design Only and engineered sets are available anywhere. Permit Ready is City of Phoenix.
